SN Plated Male Terminal Connector , SGS 16-30AWG Electrical Block Connectors

Product Categories
WCON ELECTRONICS ( GUANGDONG) CO., LTD
Contact Now

SN Plated Male Terminal Connector , SGS 16-30AWG Electrical Block Connectors

Brand Name : WCON

Model Number : PM381-3RXXASM2N PM381-3SXXXSM2N

Certification : UL/SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T, T/T

Supply Ability : 800000pcs

Delivery Time : 15~25Day

Packaging Details : tray packing

type : With Ear

port : hong kong

plastic : PA66

color : green

gender : Male

pitch : 3.81mm

Contact Now

3.81 pluggable terminal platform double deck flanged flanges on both sides of tin plating, PA66 glass fiber green

WCON 3.81mm Pitch Male Terminal Block Connector PA66 Glass Fiber Green matte SN plated L=12.6/27.9

1.Current Rating 8A
2.Voltage Rating 300v
3.Contact Resistance 8milliohm Max
4.Withstand Voltage AC2000V
5.Insulation Resistance 1000Megohm Min
6.Screw Torque 2 lbf.in
7.Wire range 16-30AWG
8.Operation Temperature ﹣40℃ to +105℃
9.Housing Material PA66 UL94V-0
10..Cover Material PA66 UL94V-0
11.Screw Steel
12.Pin Block Brass
13.Contact Phosphor Bronze
14.Side Screw Steel

Item name: 3.81 Pluggable Terminal Block
Product features: high switching frequency, high insulation, long service life, high reliability
Material: copper alloy, copper alloy, nickel or nickel alloy
Application: mainly used in lighting, communications, security and other industries. The application of industry pluggable terminal blocks is the most main pan, such as frequency, riot, control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications of pluggable terminal blocks are: plug to stable contact resistance to be small, to be able to meet the life and fatigue degree, so higher requirements for metal shrapnel materials. This requires the designer to have some experience in structure and material selection. For the fence type terminals are mainly used in: power supply, relay (especially double terminal), inverter, elevator industry (less), air conditioning.

SN Plated Male Terminal Connector , SGS 16-30AWG Electrical Block ConnectorsSN Plated Male Terminal Connector , SGS 16-30AWG Electrical Block Connectors

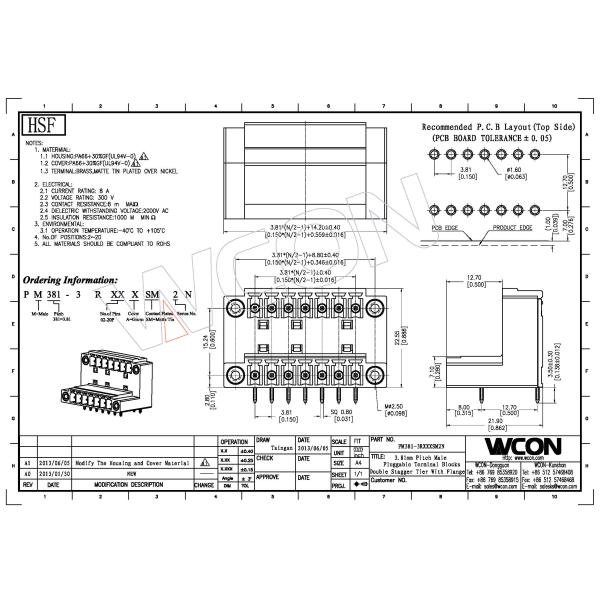

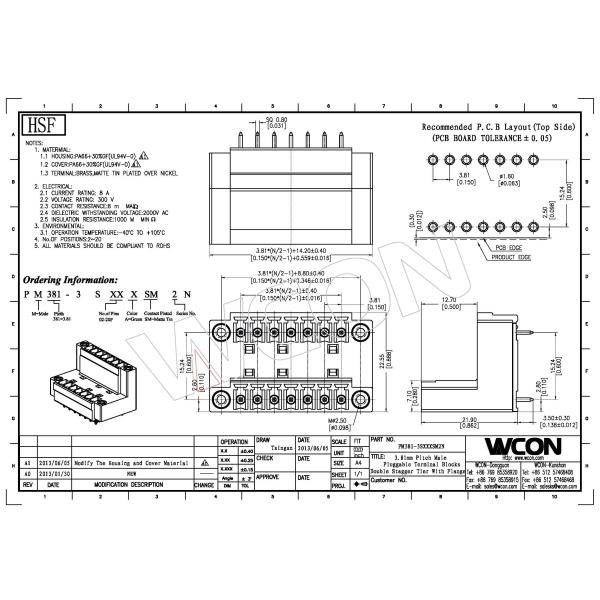

SN Plated Male Terminal Connector , SGS 16-30AWG Electrical Block ConnectorsDrawing:PM381-3RXXXSM2N.pdf PM381-3SXXXSM2N.pdf
